FLEXIBLE GEAR COUPLING

Full Gear Coupling
Full gear type NG Boson flexible gear coupling consists of two identical toothed hub, two identical flanged sleeves with internal teeth, a set of flanged bolts, nuts and lock washers and lube plug. The basic characteristics of Shivam Industrial Tools Company curved tooth flexible gear coupling are distinguished by their mechanical atrength and flexibility, which accommodates angular offset or combine angular offset misalignment within allowable ratings but also permits axial float or thermal expansion of connected shafts

Curved tooth Flexible Full Gear Couplings

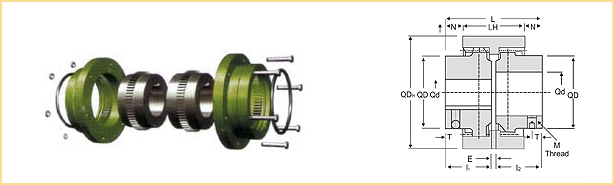

Diagram of Curved tooth Flexible Full Gear Couplings

Technical Data for Curved Tooth Flexible Full Gear Couplings

COUPLING SIZE BFG	LOAD CAPACITY		Max RPM	Bore		Approx Weight (kg)	App. GD2 value (kg.-M2)	DIMENSION IN M.M.
COUPLING SIZE BFG	Torque in kgf-m.	H.P. Per 100 rpm	Max RPM	Max.	Pilot	Approx Weight (kg)	App. GD2 value (kg.-M2)	AØ	BØ	CØ	D	E	F	G	M
101	107	15	6500	50	15	10	0.14	170	110	65	56	50	15	117	66
102	250	35	5200	60	20	15	0.20	185	125	85	70	63	15	145	85
103	451	63	4000	75	30	26	0.45	220	150	105	87	79	20	179	110
104	859	102	3400	90	35	40	0.95	250	175	130	107	97	20	215	130
105	1303	182	2900	110	40	60	2.00	290	20	155	111	105	25	232	145
106	2005	280	2600	125	45	85	3.00	320	230	175	126	118	25	262	160
107	3473	485	2200	140	50	120	5.30	350	260	205	142	135	25	294	175
108	4512	630	2000	160	60	180	8.50	380	290	230	155	146	25	320	190
109	5622	785	1800	180	70	210	15.00	430	330	250	165	157	25	340	205
110	8236	1150	1500	200	100	290	30.00	490	390	310	182	172	25	340	205
111	11000	1536	1250	260	160	550	58.00	545	445	350	200	193	30	410	240
112	14700	2053	1120	300	180	710	88.00	590	490	400	240	232	30	490	280
113	20000	2793	1000	330	200	980	138.00	680	555	440	260	242	35	535	310
114	28600	3994	900	370	220	1320	291.00	730	610	500	280	267	35	575	330
115	34750	4852	800	410	250	1700	353.00	780	660	540	320	306	35	655	370
116	60000	8378	710	455	300	2550	680.00	900	755	625	350	335	45	720	425
117	85350	11917	630	520	375	3620	1235.00	1000	855	720	400	3886	45	820	460
118	113000	15778	560	610	450	4860	1965.00	110	950	810	450	430	55	920	510
119	149000	20805	500	710	520	6380	3012.0	1250	1050	910	485	466	55	1000	560

Half Gear Coupling

Curved tooth Flexible Half Gear Couplings

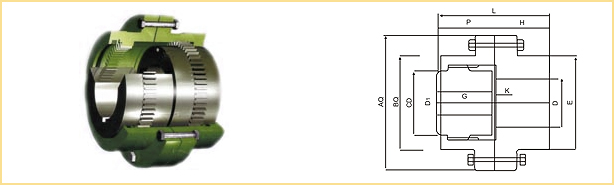

Diagram of Curved tooth Flexible Half Gear Couplings

Technical Data for Curved Tooth Flexible Half Gear Couplings

COUPLING SIZE BHG	LOAD CAPACITY		Max RPM	Bore			Approx Weight (kg)	MI GD2 (kg.-M)	DIMENSION IN M.M.
COUPLING SIZE BHG	Torque in kgf-m.	H.P. Per 100 rpm	Max RPM	Max. D1	Max D	Min.	Approx Weight (kg)	MI GD2 (kg.-M)	AØ	BØ	CØ	EØ	F	G	H	L	K
101	107	15	6500	50	60	15	10	0.14	170	110	65	85	50	55	58	115	5
102	250	35	5200	60	75	20	15	0.20	185	125	85	110	62	70	72.5	145	5
103	451	63	4000	75	90	30	26	0.48	220	150	105	130	78	85	87.5	175	5
104	859	120	3400	90	110	35	40	0.95	250	175	130	160	96	105	107.5	215	5
105	13.0	182	2900	110	130	40	60	1.90	290	200	155	185	100	110	115	230	10
106	2005	280	2600	125	150	45	85	3.00	320	230	175	215	117	125	130	260	10
107	3473	485	220	140	170	50	120	5.25	350	260	205	240	134	140	145	290	10
108	4512	630	2000	160	200	60	180	8.50	380	290	230	285	147	155	160	320	10
109	5622	785	1800	180	220	70	210	15.0	430	330	250	315	156	165	170	340	10
110	8236	1150	1500	200	260	100	290	30.00	490	390	310	370	171	180	185	370	10
